通用母线支架 General busbar bracket
|
适合母线(宽x厚)Suiltable for busbar(wide*thick)
|
适用场景Applicable scenario
|
LM-MXZJ-1线
|
12,20,30*5,10
|
PE/N
|
LM-MXZJ-3线/60
|
12,15,20,25*5,10
|
间距60mm
|
LM-MXZJ-4线/60
|
12,15,20,25*5,10
|
间距60mm
|
LM-MXZJ-3线/185
|
12,15,20,25*5,10
|
间距185mm
|
母线支架末端盖Cover of busbar bracket
|
作用Effec
|
适用场景Applicable scenario
|
LM-MDG-1线
|
盖住铜排在母线支架的末端Cover the end of busbar bracket
|
1线,3线,4线支架
|
LM-MDG-3线
|
盖住铜排在母线支架的末端Cover the end of busbar bracket
|
3线支架
|

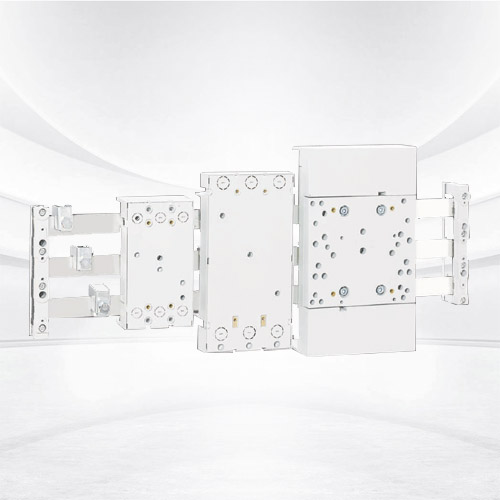

通用母线转接器General busbar adapter
|
转换器参数Adapter parameter
|
适合塑壳开关型号Type of suitable for switch
|
LM-ZJQ-255A
|
宽100mm,相距35mm(适合34-36mm)
|
德力西,天正,正泰,施耐德,西门子等同尺寸
The same size like DELIXI,TENGEN,CHINT,Schneider,SIEMENS
|
LM-ZJQ-250A
|
宽100mm,相距35mm(适合34-36mm)
|
德力西,天正,正泰,施耐德,西门子等同尺寸
The same size like DELIXI,TENGEN,CHINT,Schneider,SIEMENS
|
LM-ZJQ-400A
|
宽140mm,相距45mm(适合43-46mm)
|
德力西,天正,正泰,施耐德,西门子等同尺寸
The same size like DELIXI,TENGEN,CHINT,Schneider,SIEMENS
|
LM-ZJQ-630A
|
宽182mm,相距65mm(适合55-70mm)
|
德力西,天正,正泰,施耐德,西门子等同尺寸
The same size like DELIXI,TENGEN,CHINT,Schneider,SIEMENS
|
通用挂线端子General terminal blocks
|
适合母线类型 type of suitable for busbar
|
接线范围Scope of wiring
|
LM-GX-051
|
5mm厚
|
16-70mm²最大接400A(max 400A)
|
LM-GX-052
|
35-185mm²最大接600A(max 600A)
|
LM-GX-101
|
10mm厚
|
16-70mm²最大接400A(max 400A)
|
LM-GX-102
|
35-185mm²最大接600A(max 600A)
|
展开式接线夹Expansion clamp
|
适合母线类型 Type of suitable for busbar
|
接线范围Scope of wiring
|
LM-JX
|
20*50至30*20
|
95-185mm²最大接500A(max 500A)
|
LM-JX
|
20*50至30*20
|
95-300mm²最大接800A(max 800A)
|
不打孔开关挂钩No punch switch hook
|
适合开关类型Type of suitable for switch
|
|
LM-GG-160
|
适配160A条形开关
|
|
LM-GG-630
|
适配250A、400A、630A条形开关
|
|
接线盒、接线板Terminal box,terminal board
|
尺寸(宽*高)Size(wide*heigh)
|
接线范围Scope of wiring
|
LM-JXH 带盖罩 With cover
|
81*200mm
|
35-120mm²最大接线400A(max 400A)
|
LM-JXH 带盖罩 With cover
|
135*200mm
|
95-185mm²最大接线460A(max 460A)
|
LM-JXH 带盖罩 With cover
|
135*200mm
|
95-300mm²最大接线630A(max 630A)
|
LM-JXB 无盖罩 Without cover
|
153*184mm
|
120-300mm²最大接线800A(max 800A)
|
